The Ersa Stencil Printer ELITE plus is perfectly suited for line production when a 100% inspection is not needed - e.g. because an SPI system already exists in the line - and convinces with its simple operation. Equipped with an surface camera with two separate camera modules. Due to different types of illumination, even difficult structures on the substrate can be recognized.
|
Technical data Ersa Stencil Printer VERSAPRINT 2 ELITE plus |
||
|---|---|---|
| Substrate size (X x Y): min. 50 x 50 mm, max. 680 x 500 mm (inspection area 550 x 500 mm) | Print head: two independent squeegee heads with continuous squeegee force control, squeegee depth stop and pendulum limitation | Cycle time: 10 s + print |
| Optional stencil cleaner: 680 x 500 mm | Squeegee force: 0-230 N | Time to set up: less than 10 min |
| Substrate thickness: 0.5-6 mm | Camera: 3D line scan camera for alignment and inspection of substrate and stencil | Product changeover: under 2 min |
| Part clearance: up to 35 mm | Repetition accuracy: +/-12.5 µm @ 6 Sigma | Graphical user interface: touch screen |
| Stencil size: min. 450 x 450 mm, max. 737 x 737 mm adjustable without tools | Printing accuracy: +/-25 µm @ 6 sigma |

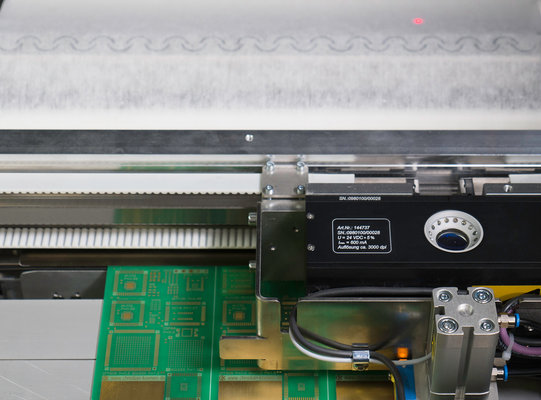

![[Translate to English:] Schablonendrucker VERSAPRINT 2 ELITE plus: Schablonenunterseitenreiniger und Flächenkamera](/fileadmin/_processed_/1/4/csm_Ersa-Printer-VERSAPRINT2-ULTRA3-07-600_6f7ae6e901.jpg "Ersa VERSAPRINT 2: Stencil bottom cleaner and surface camera")
