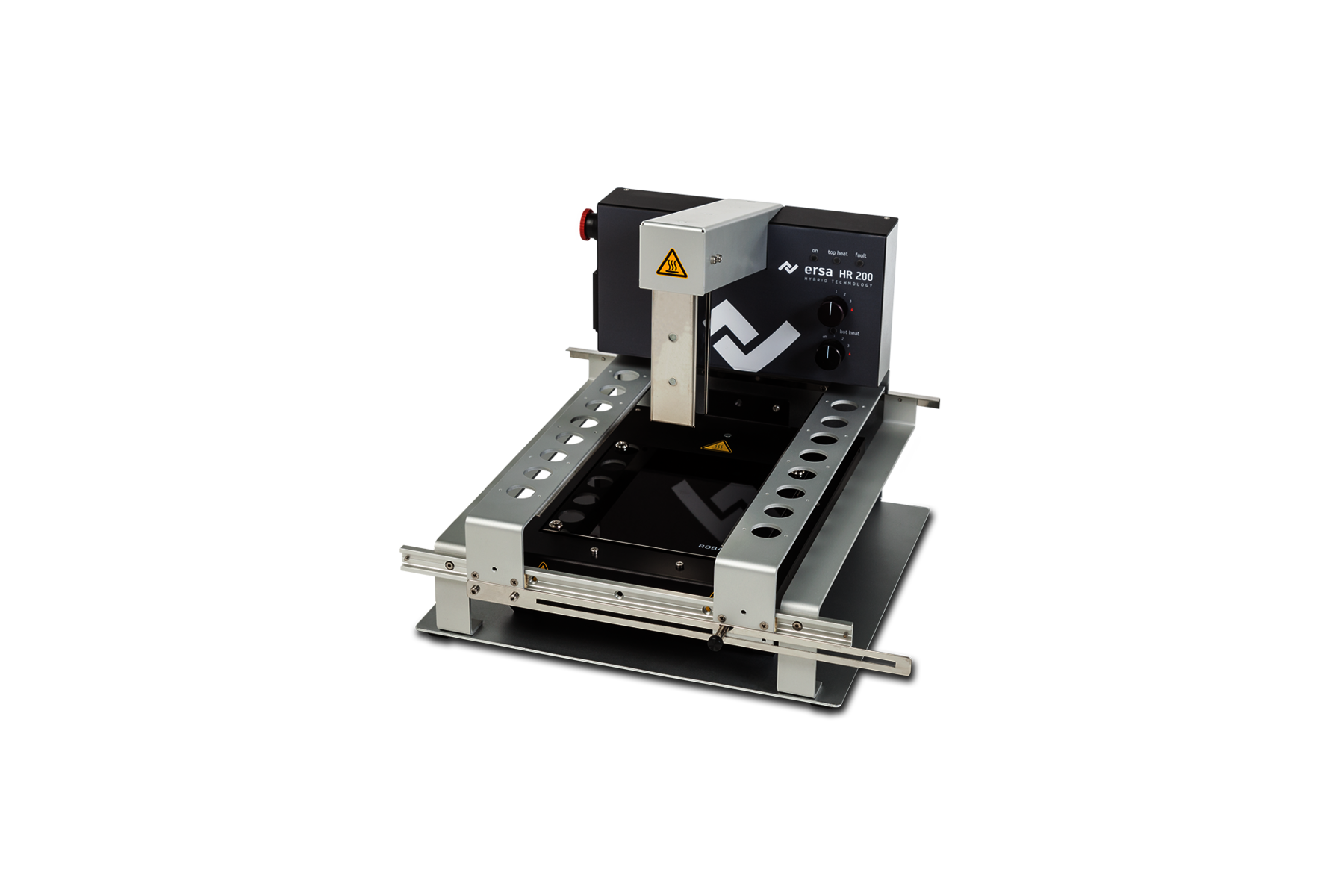

Compact Rework System Ersa HR 200

Compact Rework System HR 200

Out of the Box: Compact Hybrid Rework Station without software

Article-No.: 0HR200 und 0HR200-HP

Unpack, set up, solder! Rework can be this easy today. The compact Ersa Rework System HR 200 for rework applications "out of the box" convinces professionals and beginners with simple setup and intuitive operation. On board: 300 W hybrid high-performance heating element, with which SMT components up to 30 x 30 mm can be soldered in and out.

Rework Circuit Board Formats*

From S to M and L to XL.

*PCB format: length times width (each approx. max. limit): S = 300 x 250 mm; M = 390 x 285 (+x) mm; L = 535 x 300 mm; XL = 625 x 625 mm.

Ersa Rework Systems - format overview

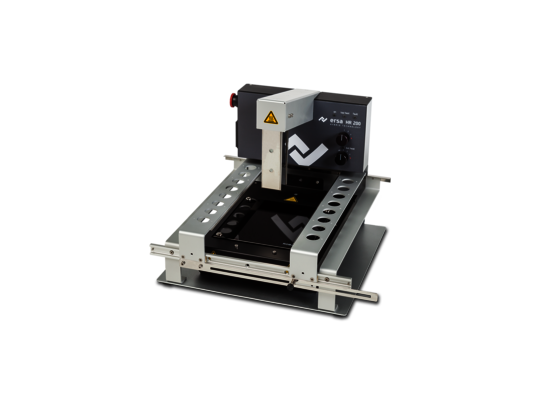

Rework-System HR 200 - durable 400 W hybrid heating head
Rework System HR 200

Technical Highlights

  • Highly efficient 400 W hybrid heating head

  • Optional with 800 W IR-bottom heating

  • Very short soldering times feasibel

  • Activation with safety foot switch

  • Operation LEDs on the system

  • Intuitive operation without software

Rework System HR 200 - precise component placement
Rework Technology

Maintaining Added value!

The Technology of Ersa Rework Systems sustainably secures the added value of electronics:

  • gentle heating technology
  • sensor guided soldering processes
  • contactless residual solder removal
  • precise component placement
  • complete process documentation
  • clear user guidance

>> Learn more about Ersa Rework Technology

Specifications Rework System Ersa HR 200


Technical data HR 200

  • Dimensions (W x D x H) in mm 300 x 300 x 280
  • Weight in kg 3,7
  • Antistatic Design (y/n) y
  • Power Rating in W 400 + 800
  • Nominal voltage in V AC 230
  • Upper heating Hybrid emitter 400 W, 30 x 30 mm
  • Lower heating IR emitter 800 W, 150 x 150 mm
  • PCB size in mm from 20 x 20 to 215 x 300 (+x)
  • Component size in mm from 1 x 1 to 30 x 30
  • Test symbol CE
Play movie

Ersa Rework with HR 200

Rework out of the Box. Unpack. Set up. Solder! Rework can be that simple today.
