Contactless Ersa Rework System HR 100

Non-contact gentle: Rework hand-guided or stationary

Article-No.: 0IRHR100A

The Rework System HR 100 uses the revolutionary and patented Ersa Hybrid Rework technology to safely desolder and replace small SMDs. The medium wave IR radiation combined with a gentle hot air jet guarantees optimal energy transfer to the component.

Rework Circuit Board Formats*

From S to M and L to XL.

*PCB format: length times width (each approx. max. limit): S = 300 x 250 mm; M = 390 x 285 (+x) mm; L = 535 x 300 mm; XL = 625 x 625 mm.

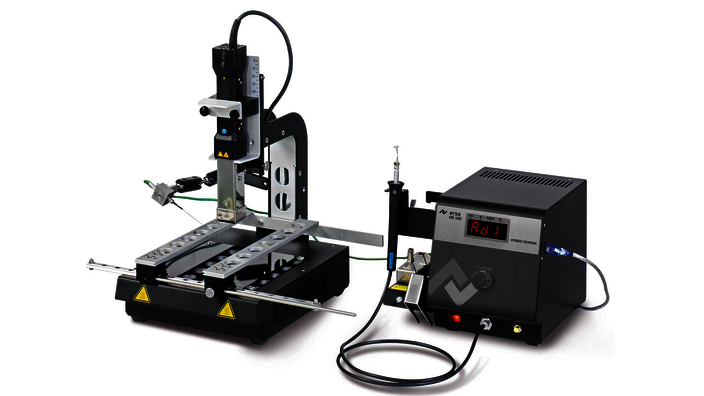

Rework System HR 100

Technical Highlights

Patented hybrid rework technology (combination of IR heating technology and convection) for safe desoldering and soldering
Optimum energy transfer and gentle heating of chip components 0201 up to 20 x 20 mm SMDs
No blowing away of neighbouring components
Optionally available with stand, 800 W IR bottom heating and PCB intake
Optionally with stand, 800 W IR underheater and PCB holder
Vac Pen for safe handling of devices
Operation software IRSoft

Rework System HR 100 - sensor guided soldering processes

Rework Technology

Maintaining Added value!

The Technology of Ersa Rework Systems sustainably secures the added value of electronics:

gentle heating technology
sensor guided soldering processes
contactless residual solder removal
precise component placement
complete process documentation
clear user guidance

>> Learn more about Ersa Rework Technology

Specifications Rework System Ersa HR 100

Technical data HR 100

HR 100 Base Station

Dimensions (W x D x H) in mm: 211 x 220 x 168
Weight in kg: 4.5
Antistatic Design (y/n): yes
Power Rating in W: 200
Nominal voltage in V AC: 230
Upper heating: 200 W (Hybrid Tool)
Component size in mm: 1 x 1 bis 20 x 20
Operation: One-touch operating button or Windows PC
Test symbol: CE

Hybrid Tool

Length in mm: Supply 1,350
Weight in kg: 0.3
Power Rating in W: 200
Antistatic Design (y/n): yes

HP 100 Heating Plate with Stand

Dimensions (W x D x H) in mm: 200 x 260 x 53,5
Weight in kg: 2,5
Antistatic Design (y/n): yes
Power Rating in W: 800
Nominal voltage in V AC: 230
PCB size in mm: from 20 x 20 to ~ 290 x 250
Test symbol: CE

Recommended accessories

Hybrid Rework Stand, single for the intake of the Hybrid Tool; use with basis system
Article No.: 0IRHR-ST050
Vacuum Pipette complete for HR 100 (0IRHR100A-HP)
Article No.: 0IRHP100A-13
AccuTC thermocouple
0IR6500-01
RPC 500
0VSRPC500A-LE
0PH100
0PH100

Available variants

Hybrid Rework System HR 100 - Basic System
Article No.: 0IRHR100A
Hybrid Rework System HR 100, complete with heating plate, stand and intake for Hybrid Tool
Article No.: 0IRHR100A-HP
