Residual Solder Removal Ersa Scavenger for HR 550 and HR 550 XL

Residual Solder Removal - Scavenger for HR 550 and HR 550 XL

Contactless residual solder removal

Article-No.: 0SC550

... for the Ersa HR 550 and HR 550 XL rework systems. With the Ersa Scavenger, both rework systems can additionally be equipped with non-contact residual solder extraction.


Rework Circuit Board Formats*

From S to M and L to XL.

*PCB format: length times width (each approx. max. limit): S = 300 x 250 mm; M = 390 x 285 (+x) mm; L = 535 x 300 mm; XL = 625 x 625 mm.

Ersa Rework Systems - format overview

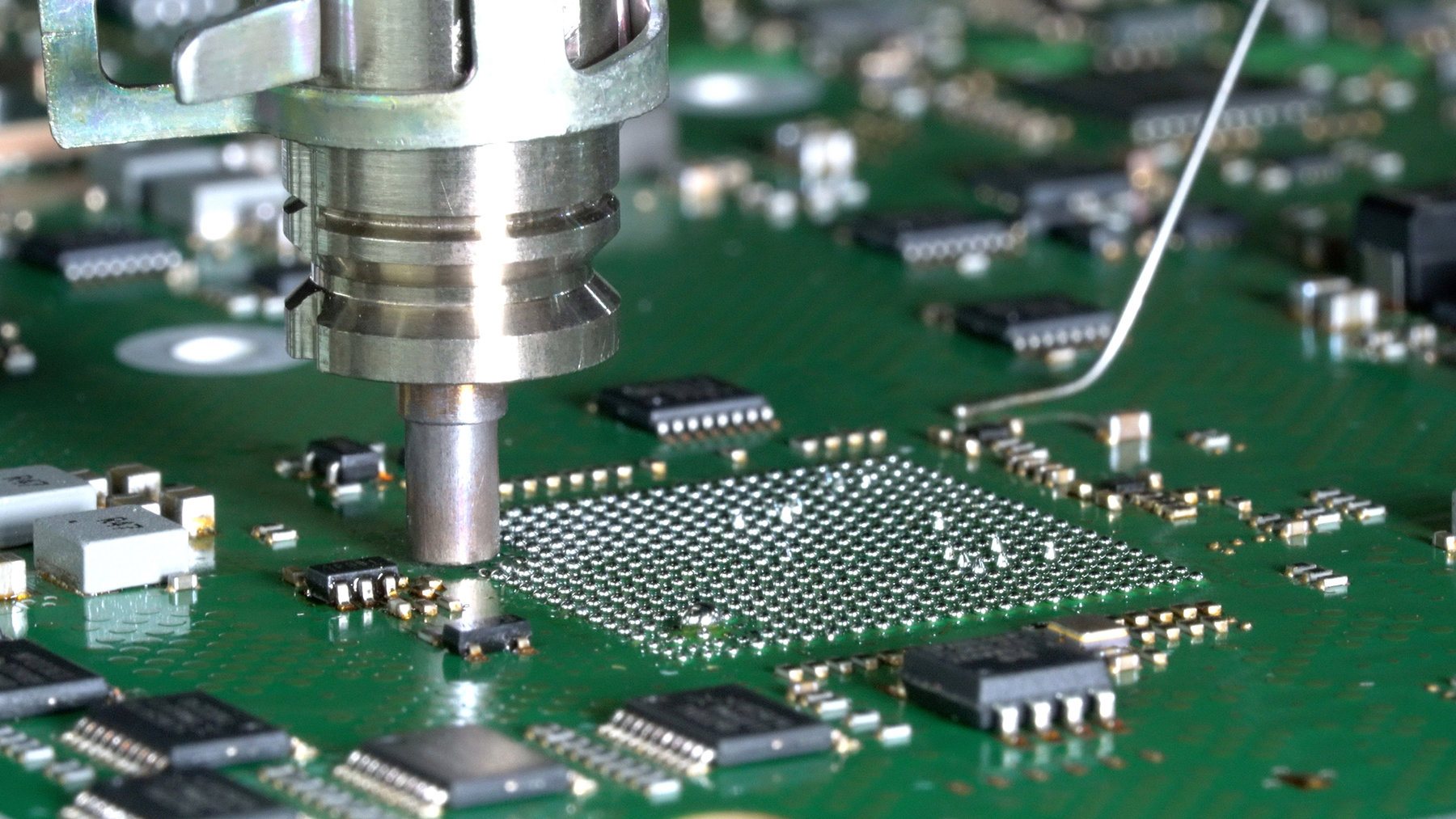

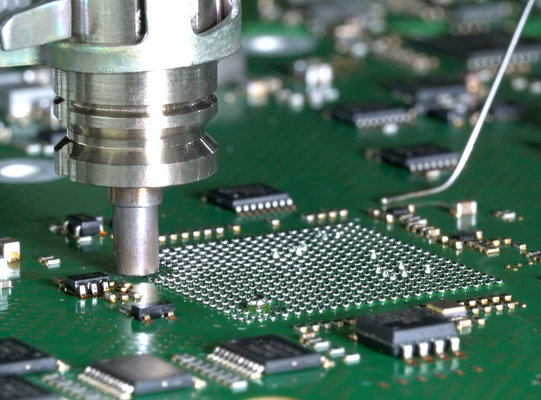

Scavenger - 400 W hot gas/vacuum cartridge in suction head
Residual Solder Removal Ersa Scavenger

Technical Highlights

  • High-quality 400 W hot gas/vacuum cartridge in suction head

  • Spacious solder collecting tank

  • Process gas cleaning

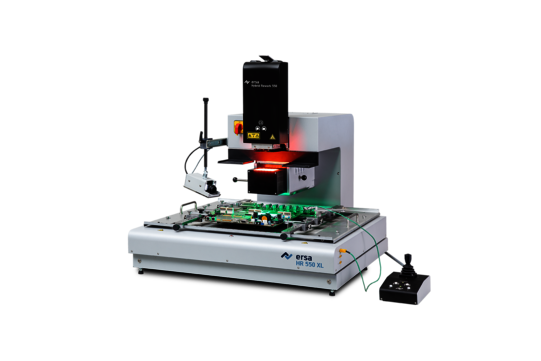

  • Integration possible in HR 550 or HR 550 XL

  • Process control via HRSoft 2 and clearly arranged operating elements

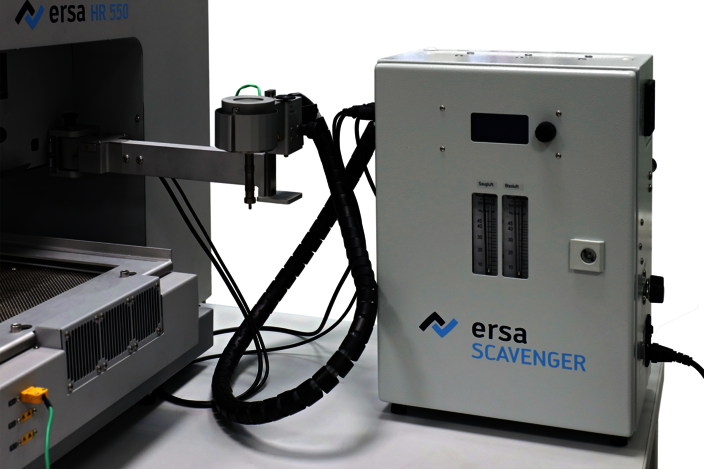

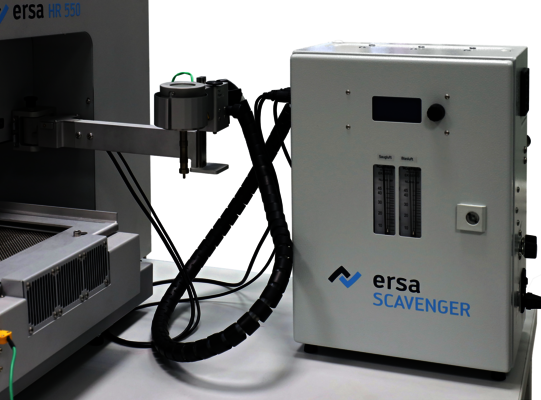

Ersa Scavenger offers contactless residual solder removal (HR 550 and HR 550 XL)
Rework Technology

Maintaining Added value!

The Technology of Ersa Rework Systems sustainably secures the added value of electronics:

  • gentle heating technology
  • sensor guided soldering processes
  • contactless residual solder removal
  • precise component placement
  • complete process documentation
  • clear user guidance

>> Learn more about Ersa Rework Technology



Specifications Residual Solder Removal Ersa Scavenger


Technical data Ersa Scavenger

  • Dimensions (W x D x H) in mm: 300 x 210 x 420 mm
  • Dimensions: required table space approx. 600 x 500 mm
  • Weight in kg: 18,5
  • Antistatic Design (y/n): yes
  • Power Rating in W: 400
  • Nominal voltage in V AC: 230
  • Upper heating: hot gas
  • Compressed air connection: 60 l/min at 6 bar, oil free, quick coupling ¼ inch
  • Component size in mm: all common SMD pad formats
  • Operation: set elements and HRSoft 2
  • Test symbol: CE
Play movie

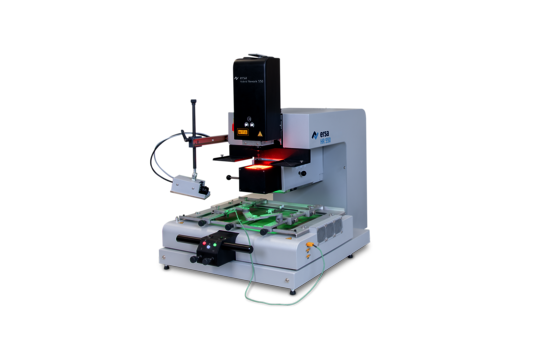

Guided Rework: Ersa HR 550

Pictograms, computer-assisted placement and effective hybrid heating make reworking BTC a breeze!
